Mini Reverse EQ 0.6" and 1.0"Molded Plug-in Linear Equalizers, non-tunable, and has a JXP Footprint.. Pins are arranged in line with a diameter of 0.038”. Communication Associates Inc, offers 2 dB through 15 dB and 0dB. |
 |
|||||||||

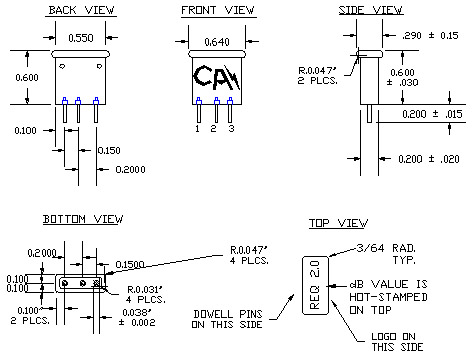

Mechanical Dimensions: 0.6"
|
||||||||||

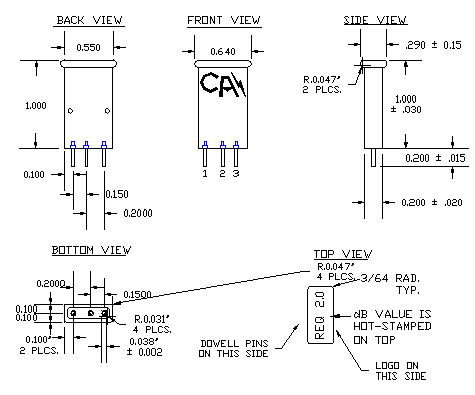

Mechanical Dimensions: 1.0"
|
||||||||||
|
||||||||||
|
dB
VALUE |
CA
P/N |
BANDWIDTH
(MHz)
|
INSERTION
LOSS (dB MAX.) |
FLATNESS
DESIRED SIGNATURE (± dB)
|
RETURN
LOSS IN (dB) |
RETURN
LOSS OUT (dB) |
| 0 |
37700, 37800 |
1-900 |
- |
0.1 |
-25 |
-25 |
| 1 |
37701, 37801 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
2 |
37702, 37802 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
| 3 |
37703, 37803 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
| 4 |
37704, 37804 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
| 5 |
37705, 37805 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
6 |
37706, 37806 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
| 7 |
37707, 37807 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
8 |
37708, 37808 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
| 9 |
37709, 37809 |
5-42 |
0.65 |
0.25 |
-24 |
-24 |
10 |
37710, 37810 |
5-42 |
0.80 |
0.25 |
-24 |
-24 |
| 11 |
37711, 37811 |
5-42 |
0.80 |
0.25 |
-24 |
-24 |
| 12 |
37712, 37812 |
5-42 |
0.80 |
0.25 |
-24 |
-24 |
| 13 |
37713, 37813 |
5-42 |
0.80 |
0.25 |
-24 |
-24 |
14 |
37714, 37814 |
5-42 |
0.80 |
0.25 |
-24 |
-24 |
| 15 |
37715, 37815 |
5-42 |
1.00 |
0.25 |
-24 |
-24 |
16 |
37716, 37816 |
5-42 |
1.00 |
0.25 |
-24 |
-24 |
| 17 |
37717, 37817 |
5-42 |
1.00 |
0.25 |
-24 |
-24 |
18 |
37718, 37818 |
5-42 |
1.00 |
0.25 |
-24 |
-24 |
| 19 |
37719, 37819 |
5-42 |
1.00 |
0.25 |
-24 |
-24 |
20 |
37720, 37820 |
5-42 |
1.00 |
0.25 |
-24 |
-24 |
| Notes: |
| 1. Definition of cable signature is S-Parameter file cable loss times fiber T-10 .625 inch from equation. |
| 2. dB per 100 feet is 1.87416. |
