Micro Linear EQ 1Ghz JXP 0.6" and 1.0" |
||||||||||||
| Molded Plug-in Linear Equalizers, non-tunable,
designed to have the same JXP footprint as a regular attenuator / pad. Pins are arranged in line with a diameter of 0.038”. Communication Associates Inc, offers 2 dB through 13 dB. US Patent pending |
 |
|||||||||||

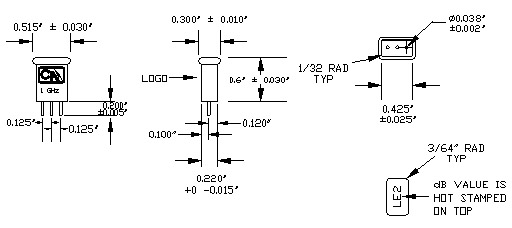

| Mechanical Dimensions 0.6" CA0020302-20313-: | ||||||||||||
 |
||||||||||||

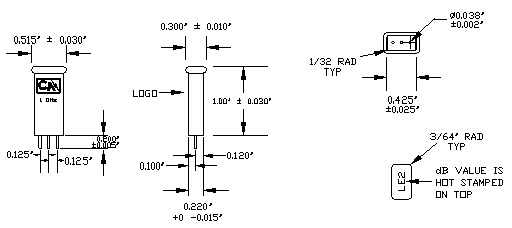

| Mechanical Dimensions 1.0" CA0020402-20413: | ||||||||||||
 |
||||||||||||
|
||||||||||||
|
dB
VALUE |
CA
P/N |
BANDWIDTH
(MHz)
|
INSERTION
LOSS (dB MAX.) |
FLATNESS
DESIRED SIGNATURE (± dB)
|
RETURN
LOSS IN (dB) |
|
| 45
MHz |
1000
MHz |
|||||
| 2.0 |
20402,
20302 |
45-1000 |
2 |
1 |
0.3 |
-22 |
| 3.0 |
20403,
20303 |
45-1000 |
3 |
1 |
0.3 |
-22 |
4.0 |
20404,
20304 |
45-1000 |
4 |
1 |
0.3 |
-22 |
| 5.0 |
20405,
20305 |
45-1000 |
5 |
1 |
0.3 |
-22 |
6.0 |
20406,
20306 |
45-1000 |
6 |
1 |
0.3 |
-22 |
| 7.0 |
20407,
20307 |
45-1000 |
7 |
1 |
0.3 |
-22 |
8.0 |
20408,
20308 |
45-1000 |
8 |
1 |
0.3 |
-20 |
| 9.0 |
20409,
20309 |
45-1000 |
9 |
1 |
0.3 |
-20 |
| 10.0 |
20410,
20310 |
45-1000 |
10 |
1 |
0.3 |
-20 |
| 11.0 |
20411,
20311 |
45-1000 |
11 |
1 |
0.3 |
-18 |
12.0 |
20412,
20312 |
45-1000 |
12 |
1 |
0.3 |
-18 |
| 13.0 |
20413,
20313 |
45-1000 |
13 |
1 |
0.3 |
-18 |
| Notes: |
| 1. Definition of cable signature is S-Parameter file cable loss times fiber T-10 .625 inch from equation. |
| 2. dB per 100 feet is 1.87416. |
