Micro Linear Purple EQ 870Mhz JXP 0.6" and 1.0" |
||||||||||||
| Molded Plug-in Linear Equalizers, non-tunable,
designed to have the same JXP footprint as a regular attenuator / pad. Pins are arranged in line with a diameter of 0.038”. Communication Associates Inc, offers 2 dB through 13 dB. US Patent pending |
 |
|||||||||||

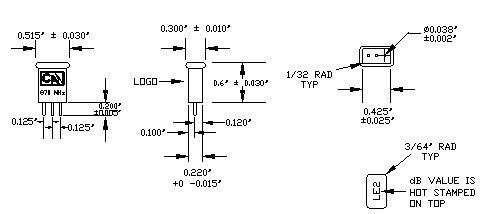

| Mechanical Dimensions 0.6" CA0021302-21313-: | ||||||||||||
 |
||||||||||||

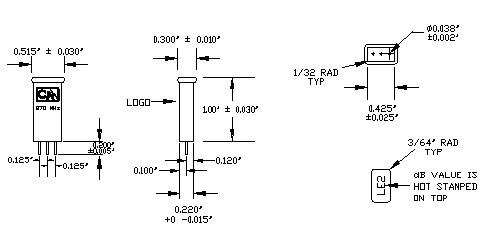

| Mechanical Dimensions 1.0" CA0021402-21413: | ||||||||||||
 |
||||||||||||
|
||||||||||||
|
dB
VALUE |
CA
P/N |
BANDWIDTH
(MHz)
|
INSERTION
LOSS (dB MAX.) |
FLATNESS
DESIRED SIGNATURE (± dB)
|
RETURN
LOSS IN (dB) |
|
| 45
MHz |
1000
MHz |
|||||
| 2.0 |
21302,
21402 |
45-870 |
2 |
1 |
0.3 |
-22 |
| 3.0 |
21303,
21403 |
45-870 |
3 |
1 |
0.3 |
-22 |
4.0 |
21304,
21404 |
45-870 |
4 |
1 |
0.3 |
-22 |
| 5.0 |
21305,
21405 |
45-870 |
5 |
1 |
0.3 |
-22 |
6.0 |
21306,
21406 |
45-870 |
6 |
1 |
0.3 |
-22 |
| 7.0 |
21307,
21407 |
45-870 |
7 |
1 |
0.3 |
-22 |
8.0 |
21308,
21408 |
45-870 |
8 |
1 |
0.3 |
-22 |
| 9.0 |
21309,
21409 |
45-870 |
9 |
1 |
0.3 |
-22 |
| 10.0 |
21310,
21410 |
45-870 |
10 |
1 |
0.3 |
-20 |
| 11.0 |
21311,
21411 |
45-870 |
11 |
1 |
0.3 |
-18 |
12.0 |
21312,
21412 |
45-870 |
12 |
1 |
0.3 |
-18 |
| 13.0 |
21313,
21413 |
45-870 |
13 |
1 |
0.3 |
-18 |
| Notes: |
| 1. Definition of cable signature is S-Parameter file cable loss times fiber T-10 .625 inch from equation. |
| 2. dB per 100 feet is 1.87416. |
