Micro Cable EQ 1GHz 1.0" GreenMolded Plug-in Linear Equalizers, non-tunable, and has a JXP Footprint.. Pins are arranged in line with a diameter of 0.038”. Communication Associates Inc, offers 2 dB through 15 dB and 0dB. |
 |
|||||||||

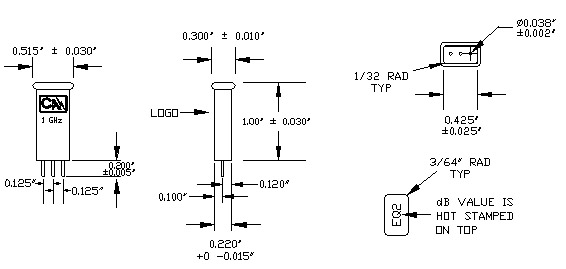

Mechanical Dimensions:
|
||||||||||
|
||||||||||
|
dB
VALUE |
CA
P/N |
BANDWIDTH
(MHz)
|
INSERTION
LOSS (dB MAX.) |
FLATNESS
DESIRED SIGNATURE (± dB)
|
RETURN
LOSS IN (dB) |
RETURN
LOSS OUT (dB) |
| 2.0 |
27402 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
|
3.0 |
27403 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
4.0 |
27404 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
|
5.0 |
27405 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
6.0 |
27406 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
|
7.0 |
27407 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
8.0 |
27408 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
|
9.0 |
27409 |
45-1000 |
0.65 |
0.3 |
-22 |
-22 |
| 10.0 |
27410 |
45-1000 |
0.80 |
0.3 |
-20 |
-20 |
|
11.0 |
27411 |
45-1000 |
0.80 |
0.3 |
-20 |
-20 |
12.0 |
27412 |
45-1000 |
0.80 |
0.3 |
-20 |
-20 |
|
13.0 |
27413 |
45-1000 |
0.80 |
0.3 |
-20 |
-20 |
14.0 |
27414 |
45-1000 |
0.80 |
0.3 |
-20 |
-20 |
|
15.0 |
27415 |
45-1000 |
1.00 |
0.3 |
-18 |
-18 |
| Notes: |
| 1. Definition of cable signature is S-Parameter file cable loss times fiber T-10 .625 inch from equation. |
| 2. dB per 100 feet is 1.87416. |
