| Molded Plug-in Cable Equalizers, non-tunable, slightly
larger than a regular JXP attenuator / pad. Pins are arranged in line with a diameter of 0.038”. Communication Associates Inc, offers 0.5, 1.5 and 0 dB through 20 dB. US Patent pending |
 |
|||||||||||

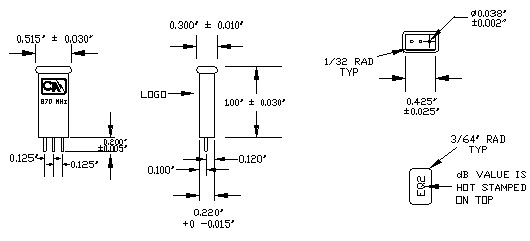

| Mechanical Dimensions: | ||||||||||||
 |
||||||||||||
|
||||||||||||
| dB
VALUE |
CA
P/N |
BANDWIDTH (MHz) |
INSERTION
LOSS (dB MAX) |
FLATNESS:
DESIRED SIGNATURE (± dB) |
TILT
(dB) |
RETURN
LOSS IN OUT (dB) |
| 2 |
CA025402 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 3 |
CA025403 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 4 |
CA025404 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 5 |
CA025405 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 6 |
CA025406 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 7 |
CA025407 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 8 |
CA025408 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 9 |
CA025409 |
45-870 |
0.65 |
0.3 |
0.0 |
-22 |
| 10 |
CA025410 |
45-870 |
0.80 |
0.3 |
0.0 |
-20 |
| 11 |
CA025411 |
45-870 |
0.80 |
0.3 |
0.0 |
-20 |
| 12 |
CA025412 |
45-870 |
0.80 |
0.3 |
0.0 |
-20 |
| 13 |
CA025413 |
45-870 |
0.80 |
0.3 |
0.0 |
-20 |
| 14 |
CA025414 |
45-870 |
0.80 |
0.3 |
0.0 |
-20 |
| 15 |
CA025415 |
45-870 |
1.00 |
0.3 |
0.0 |
-18 |
| Notes: |
| 1. Definition of cable signature is S-Parameter file cable loss times fiber T-10 .625 inch from equation. |
| 2. dB per 100 feet is 1.87416. |
