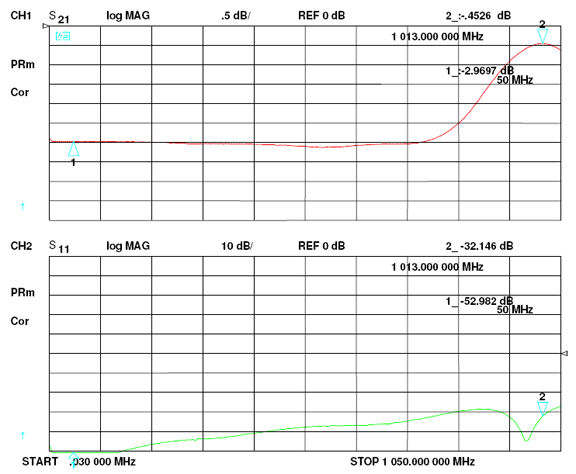

Communication Associates, Inc. is proud to announce the new addition of their JXP Universal Peaking Attenuator (UPA) to their line of Patented Plastic Injection Molded Equalizers. This device is intended to equalize that unwanted Roll-off response in your distribution plant. Simply substitute a JXP attenuator in your amplifier or Node with this device, and you are on your way to a flatter EOL response. Available in a range of Attenuator values. Available in 2 dB through 9 dB Attenuator values, in 1 dB steps. Color - Black
U.S. Patent No. 7,177,143 B1 |
|||||
|
|
|||||
|
Phone (256)
835-0900
JXP style are
rectangular attenuators with pins arranged in-line (0.125 inch ctr.
- ctr. spacing). Pins are often 0.038 inch diameter. This style
attenuator can most often be inserted in two ways (flipped 180 degrees),
and provides the same performance either way. Communication Associates
Inc. typically offers 0 through 25 dB in steps of 0.5 dB. Additionally,
0.25 and 0.75 dB steps are available for JXP series up to 5.0 dB.
Fax (256) 835-0992 E-mail us at sales@caisolutions.com
SXP style are
round attenuators with pins arranged in a triangular shape. Pins
are often 0.019 inch diameter. Some of these have a mechanical keying
feature to help orient them properly for insertion, while others
do not. Communication Associates Inc. typically offers 0 through
25 dB in steps of 0.5 dB.
Fax (256) 835-0992 E-mail us at sales@caisolutions.com
Communication
Associates Inc. offers a line of thermal attenuators in 0 through
10 dB. These are attenuators which change their amount of attenuation
as temperature changes. This is useful for compensating system level
errors in some cases. Lower dB values are usable through 750 MHz,
while the entire line is rated at 200 MHz for return path applications.
Fax (256) 835-0992 E-mail us at sales@caisolutions.com |
|||||
